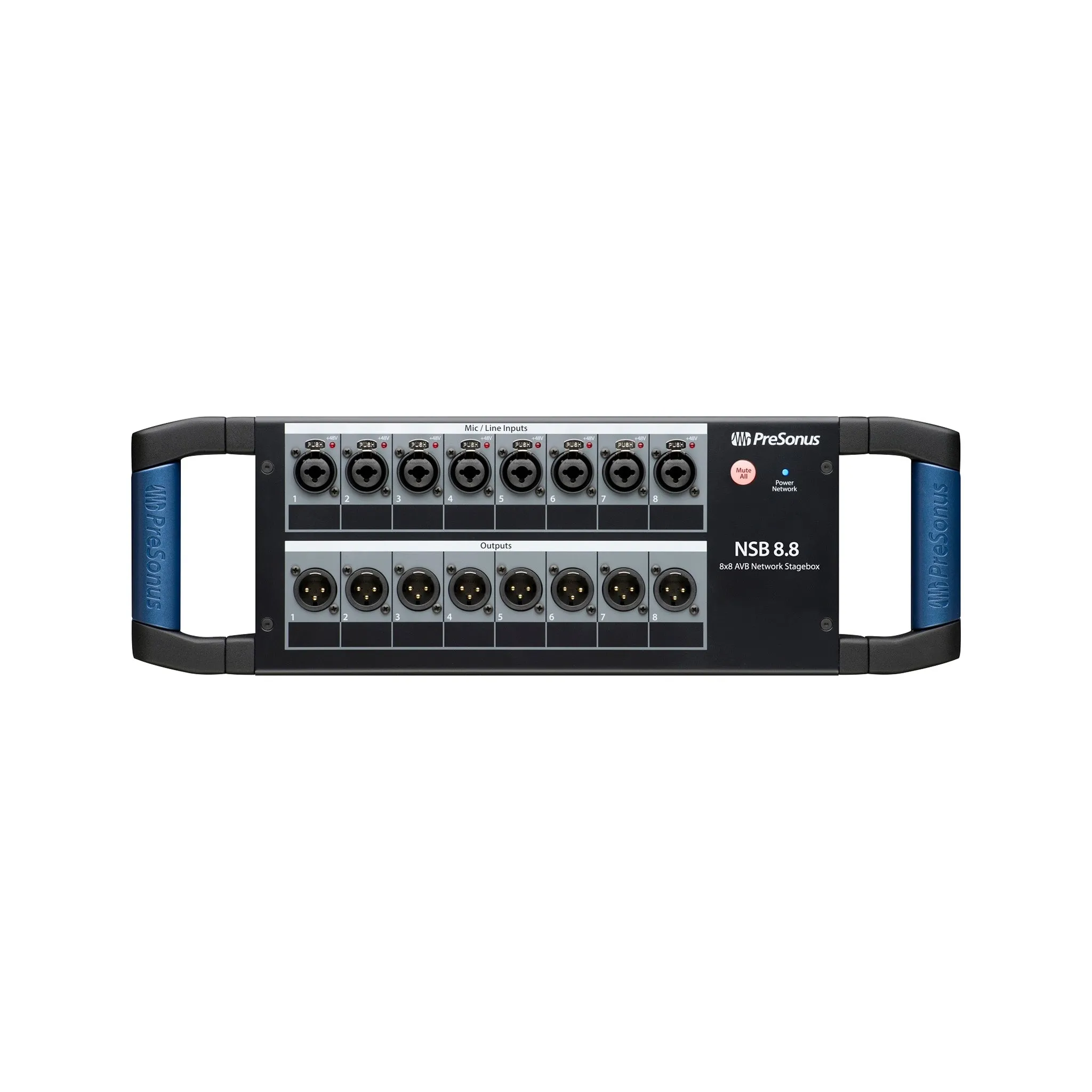

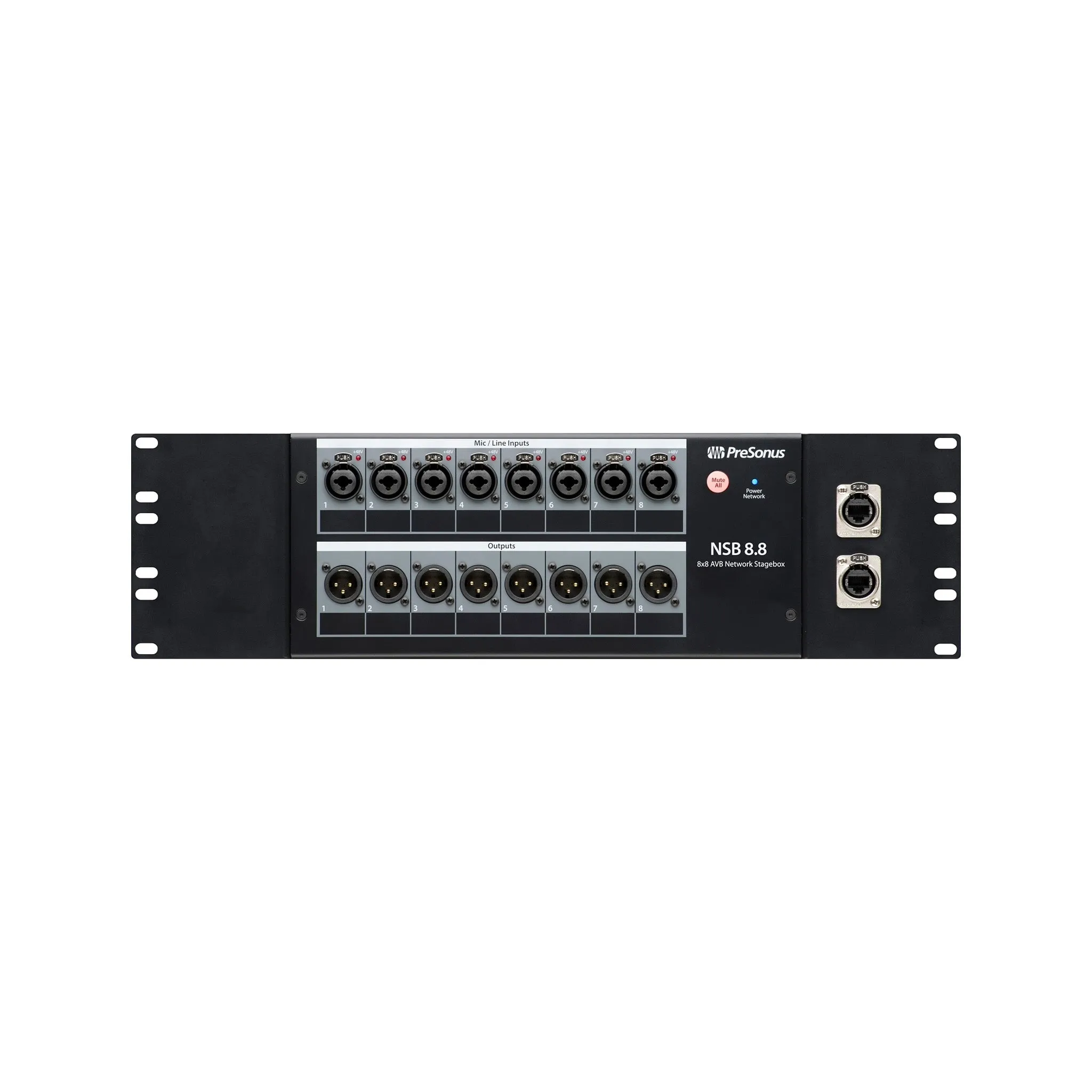

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built-in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 8.8 to sit well on the stage and survive the rigours of the road. The unit can be rack-mounted with an optional rack-ear kit.
Features:
- Rugged stage box enclosure with handles
- 8 locking, mic/line inputs and 8 locking XLR outputs
- 8 remote-controllable XMAX preamps
- Gain compensation for shared inputs

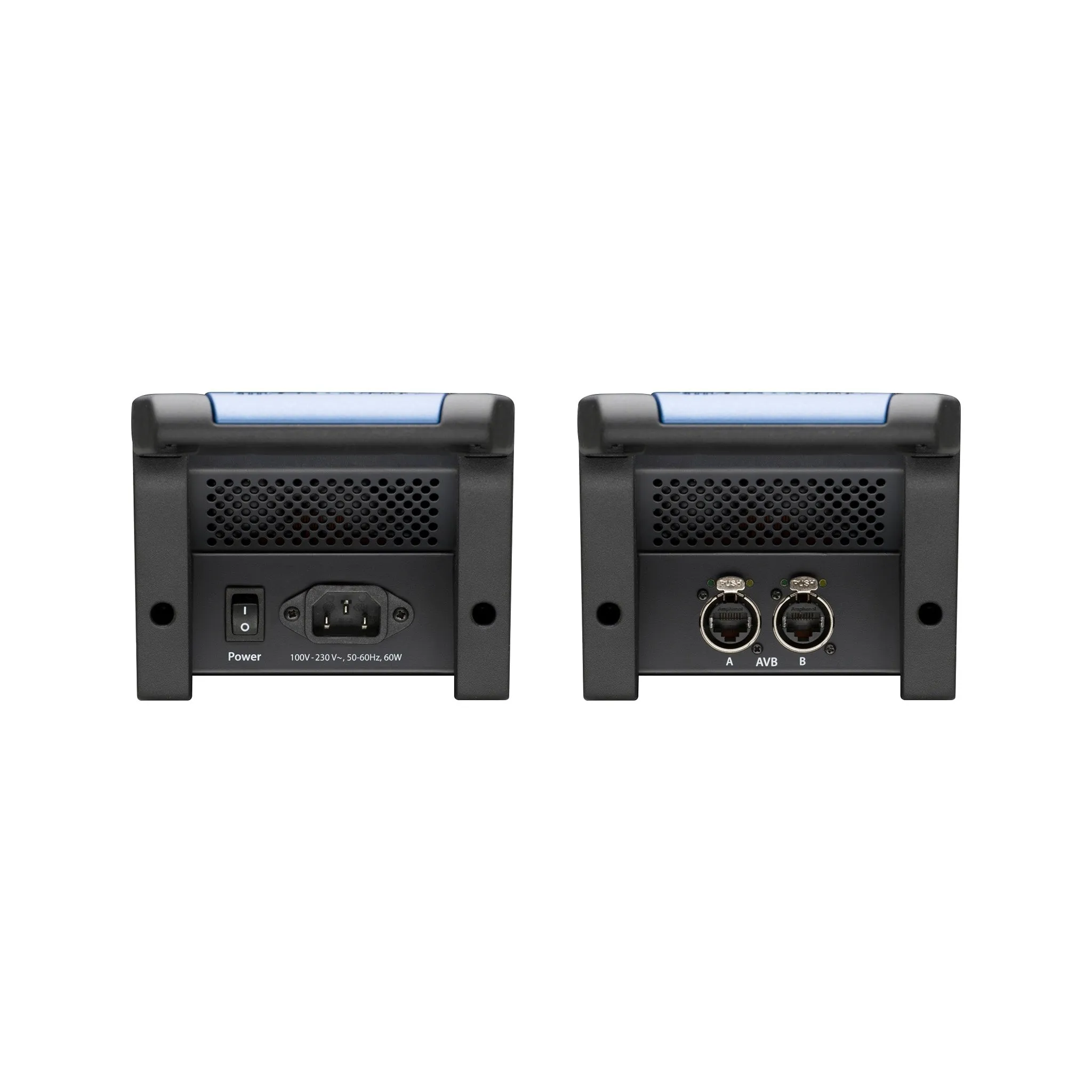

- 2 AVB ports with locking XLR Ethernet jacks
- 16x8 AVB (8 direct input channels 8 gain compensated input channels)
- Easy setup and control from Series III mixers and free PreSonus UC Surface software
Specifications:
- Includes: NSB 8.8 AVB-networked stage box. IEC Power Cord
- Dimensions: 5.2” (H) x 8.8” (W) x 4.5” (D) / 132mm (H) x 133mm (W) x 114mm (D)
- Weight: 2.4 kg / 5.4 lbs
